Vacheron Constantin: Traditionnelle Twin Beat Perpetual Calendar

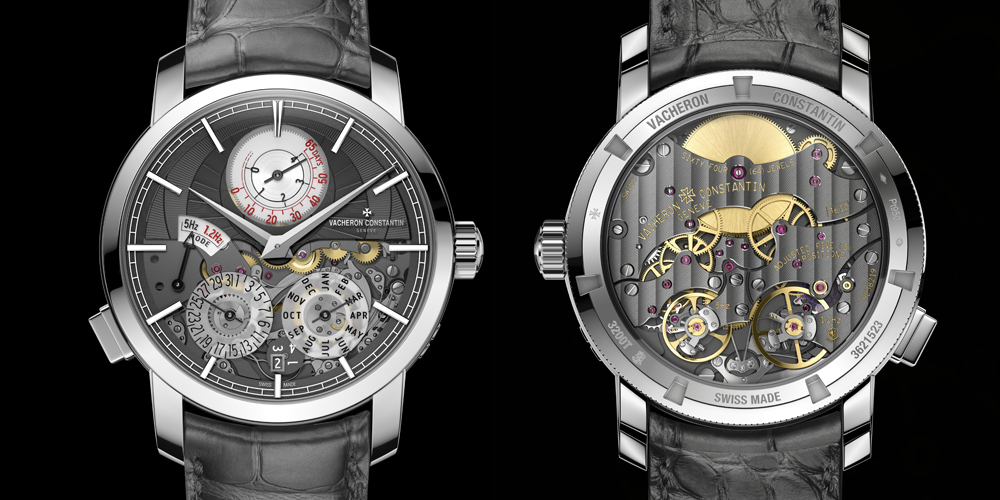

Vacheron Constantin presents the Traditionnelle Twin Beat Perpetual Calendar 42mm in platinum, the first timepiece with two balances, each operating at a different frequency that extended the power reserve to 65 days.

Twin Beat

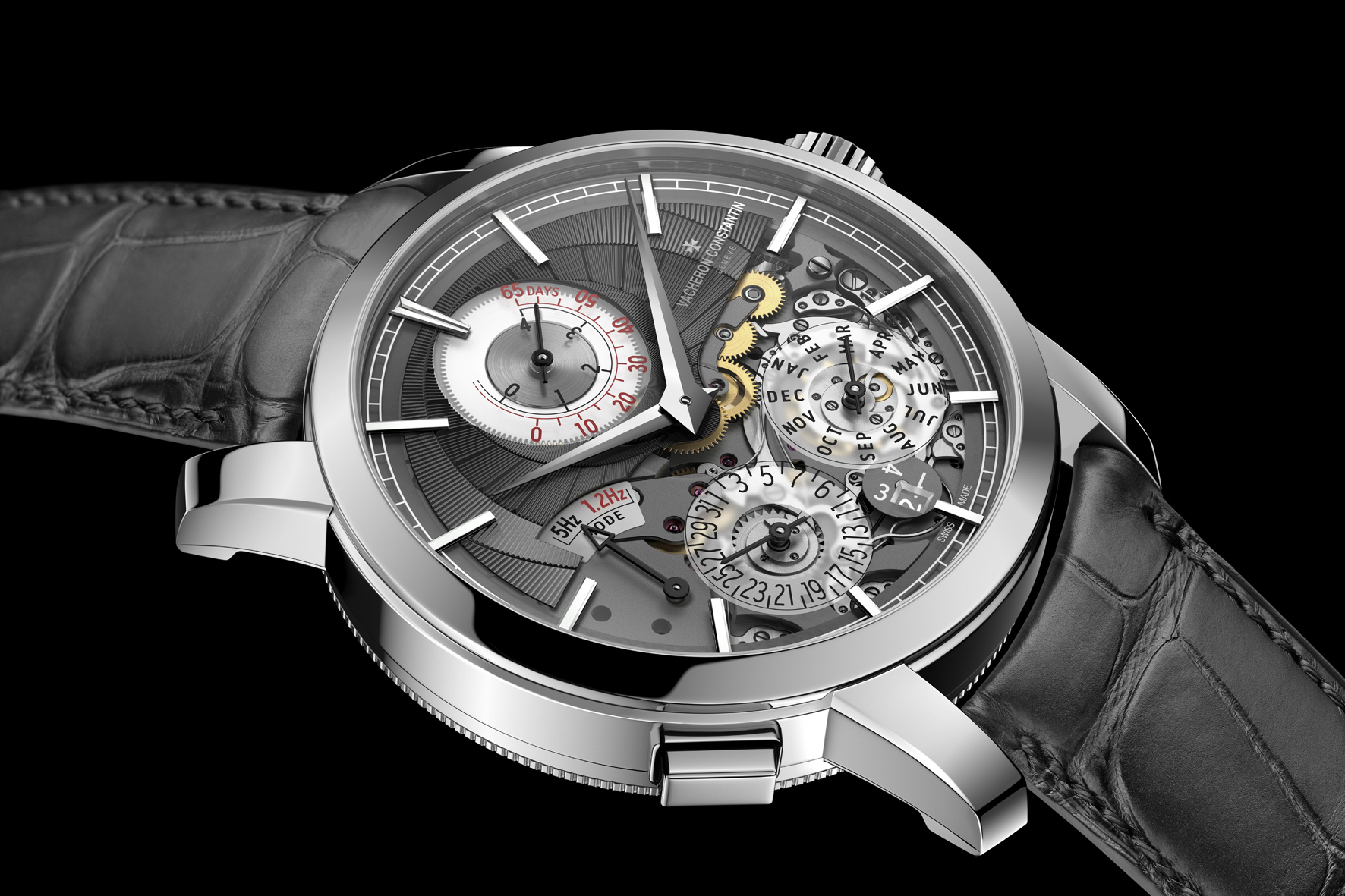

A pusher at the 8 o’clock position allows the wearer to easily switch from one frequency to another, depending on activity level. When the watch is on the wrist, the wearer will get the most out of it by keeping it in Active mode, which features a 5Hz (36,000vph) balance and 4 days of power reserve. If the watch is to be taken off, it can be switched to Standby mode, which runs on a second balance with a reduced frequency of 1.2Hz (8,640vph). This allows the maximum power reserve to be extended to at least 65 days. At any point during the Standby mode running time, the Traditionnelle Twin Beat Perpetual Calendar can be switched back to Active mode and reworn, with all its calendar indications up to date.

Twin Beat

The Vacheron Constantin Traditionnelle Twin Beat Perpetual Calendar utilises a patent-pending mechanical system that enables instantaneous switching between Active and Standby mode without interrupting the ability of the movement to keep time.

This system is inspired by the seasonal system from the Japanese Edo Period, which divided day and night into six segments, of which the length varied from day to night and from one season to another. Clocks from this period were equipped with a single or double foliot balance enabling automatic changes in their operating speed.

Crucial to the operation of the Twin Beat system is the mode selector that operates on an all-or-nothing principle, allowing only one balance to oscillate at a time. Additionally, the all-or-nothing construction ensures that the switch is instantaneous, with no lag when transitioning from one mode to the other. This guarantees that the timekeeping operations of the calibre 3610 QP are never interrupted, even for a fraction of a second, and that the time display remains as precise as possible.

Twin Beat

Both the Active and Standby balances are driven by the same mainspring barrel, which is the most efficient way of distributing energy and the only way to have a single power-reserve indication.

The other side of the Twin Beat optimised energy consumption is its Standby mode, which steps in during long periods of stasis when the watch is laid flat and a high-frequency balance would only drain the mainspring with no added advantage.

In order to fully leverage the advantages of the user-controlled Twin Beat system in maximising the potential power reserve, the perpetual calendar mechanism was reworked to use as little energy as possible.

Twin Beat

Jumping indications are notorious for their parasitic influence on the balance of a movement. The energy requirements for their jumps cut into the energy going towards the balance, and in many cases the balance loses amplitude and the chronometry of the entire movement is compromised. This effect can be exaggerated in a watch with multiple jumping indications, such as a perpetual calendar timepiece.

In the Traditionnelle Twin Beat Perpetual Calendar, Vacheron Constantin has implemented instantaneous jumping indications for the date, month and leap year. Simultaneously, the jumping mechanism has been completely redesigned, utilising a sprung dual-gear compound system that requires four times less torque than a conventional jumping display. With this improvement, even at midnight on New Year’s Eve when all three indications jump instantaneously, the effect on the amplitude of the active balance is negligible.

Twin Beat

With the Traditionnelle Twin Beat Perpetual Calendar, Vacheron Constantin has moved beyond the conventional range of oscillator frequencies for the first time. In doing so, new in-house areas of research and development were opened concerning the fundamental principles of mechanical timekeeping regulation. As a result, a new hairspring was created specifically for the needs of the highly sensitive Standby balance (1.2Hz, 8,640vph), with cross-sectional dimensions of 0.0774mm by 0.0159mm, comparable to the finest examples of human hair. The hairspring of the Standby balance is nearly four times smaller in cross section and exponentially more delicate than the hairspring of the Active balance (5Hz, 36,000vph).

Although the display of the hours and minutes may seem to be the most straight forward part of the Traditionnelle Twin Beat Perpetual Calendar, they are far from simple or conventional. Because the calibre 3610 QP has two balance wheels, only one of which is allowed to oscillate at one time, the hour and minute hands have to draw variable information from two gear trains for one reading of the time. This is accomplished by a gear differential that allows the hands to read more than one input source of timekeeping data.

A second differential is mounted on the barrel for the dual purpose of winding the mainspring and also reducing the mainspring torque as it is directed towards the Standby mode balance (armed with a delicate hairspring created especially for the slow-beat balance). Two final differentials translate the power reserve into the subdial that indicates remaining mainspring wind.

Despite all this, the calibre 3610 QP measures only 6mm in height and 32mm in diameter.

Twin Beat

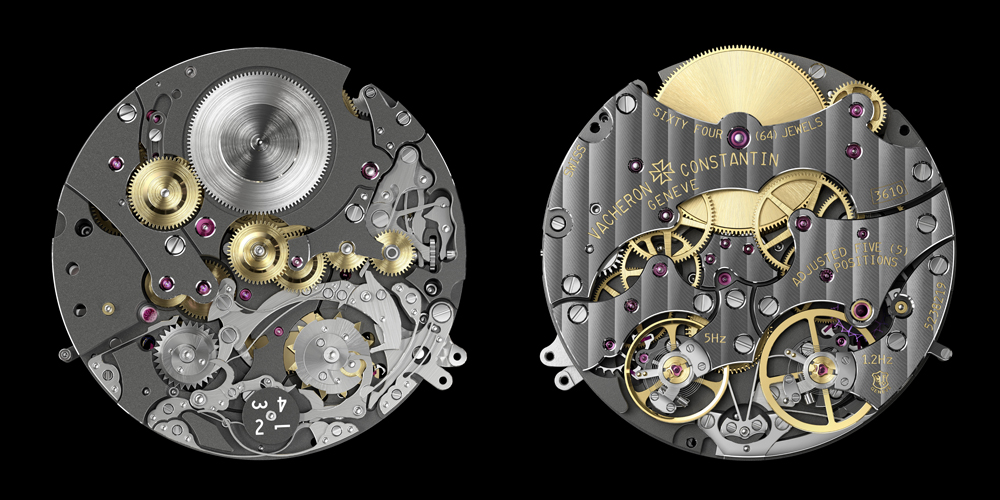

Movement plates and bridges are decorated with Côtes de Genève and then treated with NAC, a dark coating that offers superior resistance and durability compared with other similar-looking treatments.

On the dial, the art of engine turning and frosted finish are transmuted into clean radial guillochage and sand-blasted surfaces. In order to perfectly achieve this union of tradition and modernity, the dial is made in two main segments in a multi-stage process. A gold dial segment is decorated with hand- guillochage, and then fitted within an outer segment of sapphire crystal. Gold hour indexes are then set into the sapphire-crystal dial segment, which is further laser-engraved and ink-filled for a sleek, seamless appearance. (Price €.210.000)
